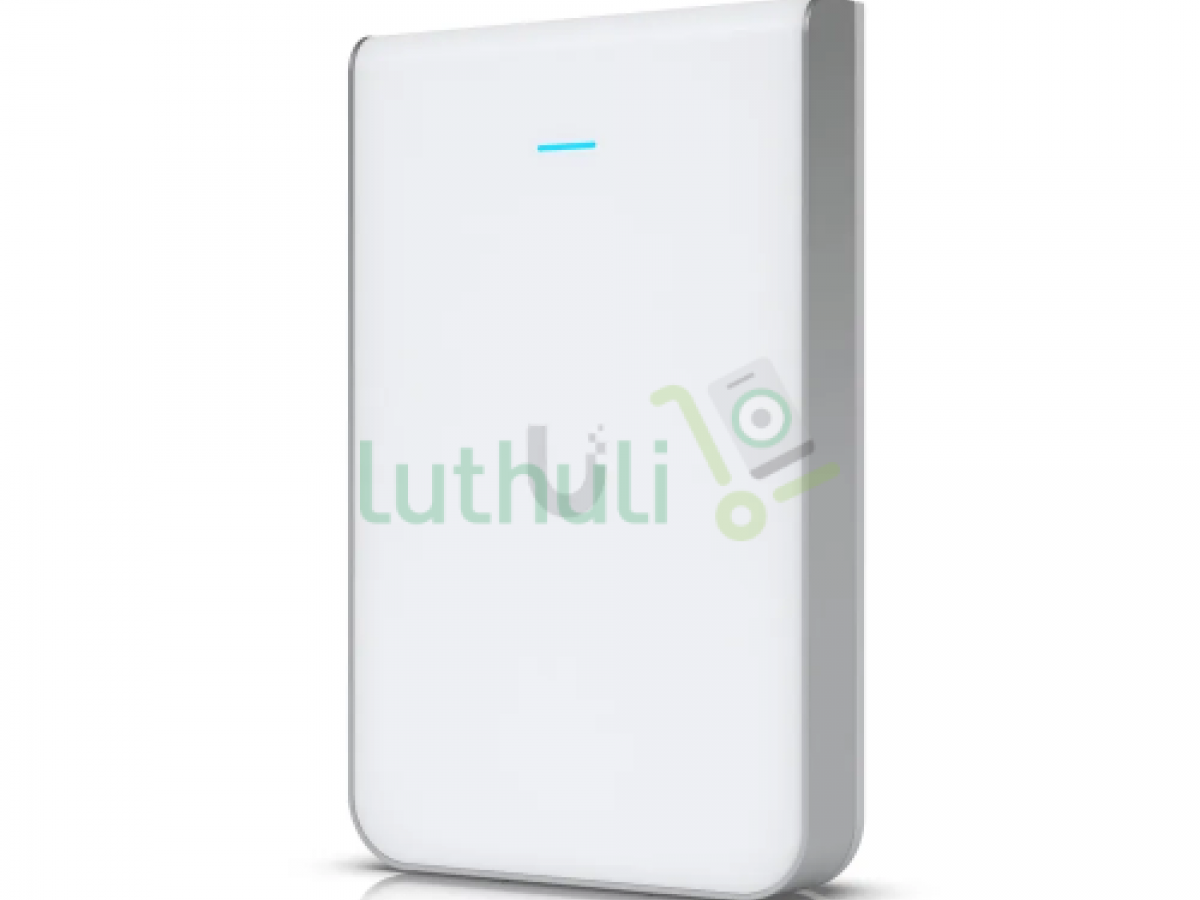

Ubiquiti UniFi 6 In-Wall Access Point U6-IW

Ubiquiti UniFi 6 In-Wall Access Point (U6-IW) – Wall-Mounted WiFi 6 with Built-In Gigabit Switch.

Upgrade your network with the Ubiquiti UniFi 6 In-Wall Access Point (U6-IW) — a sleek, wall-mounted WiFi 6 solution that seamlessly combines a high-performance dual-band access point with a built-in 4-port Gigabit Ethernet switch. Engineered for hotels, offices, schools, and high-density environments, the U6-IW delivers enterprise-grade wireless performance without sacrificing aesthetics.

Next-Generation WiFi 6 Performance ( unifi 6 in-wall access point)

The U6-IW is a dual-band access point operating on 2.4 GHz and 5 GHz, offering an aggregate over-the-air throughput of up to 5.3 Gbps — capable of supporting over 300 concurrent clients. With throughput rates of 573 Mbps on the 2.4 GHz band and up to 4.8 Gbps on the 5 GHz band, this device handles a high number of simultaneous connections, making it ideal for dense environments.

Advanced MIMO Technology for u6-iw vs u6-lite

The U6-IW features 6 spatial streams with 4×4 DL/UL MU-MIMO on 5 GHz and 2×2 DL/UL MU-MIMO on 2.4 GHz, along with antenna gains of 5.9 dBi (5 GHz) and 5.0 dBi (2.4 GHz). This translates to faster, more reliable connections for every device on your network.

Built-In 4-Port Gigabit Switch with PoE Output

The U6-IW includes four Gigabit Ethernet ports, one of which supports up to 15.4W PoE output to power compatible devices such as VoIP phones and additional access points. This eliminates the need for a separate switch in individual rooms — perfect for hotel rooms, conference rooms, and classrooms.

Compact, Discreet In-Wall Design

Measuring just 139.7 × 96 × 31.2 mm (5.5 × 3.8 × 1.3"), the U6-IW mounts flush to the wall with an included wall plate, blending seamlessly into any interior. It covers up to 1,250 ft² (115 m²), making it ideal for single-room deployments in hospitality and enterprise settings.

Effortless Setup & Centralized Management

The U6-IW is Bluetooth-compatible for quick setup and can be managed from anywhere via the UniFi Network web application or mobile app. The UniFi Network application provides centralized control with an intuitive interface that simplifies remote firmware upgrades, user and guest management, and real-time network monitoring — indispensable for large-scale deployments in corporate campuses, educational institutions, and hospitality settings.

Enterprise-Grade Security

The U6-IW supports WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3) wireless security, 802.1Q VLAN, and up to 8 BSSIDs per radio — giving IT administrators full control over network segmentation and guest access policies.

Key Specifications (SEO Table)

• Model - U6-IW
• Wifi standard - Wifi 6 (802.11ax)
• Bands - Dual - Band (2.4 GHz / 5 GHz)
• Maximum throughput - 5.3 Gbps
• LAN ports - 4x Gigabit Ethernet
  Power output  1x Port (up to 15.4W, requires PoE+)
